Connector End View C214 - Inline

OEM Connector End Views

Source configuration appliesSource reference 3,802HTML edition
← Chapter contentsManual collection

FEMALE

Harness 12638

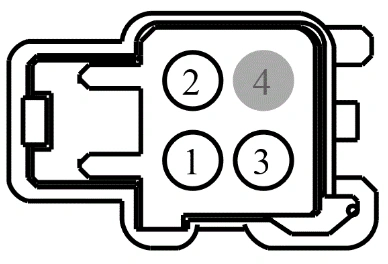

Connector End View C214 - Inline — original illustration 1, reference 3802Original colors & callouts · Select to enlarge

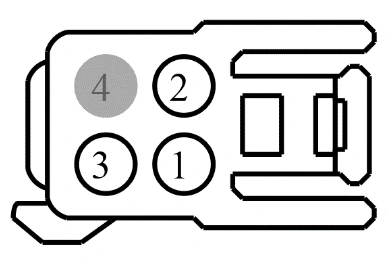

Connector End View C214 - Inline — original illustration 2, reference 3802Original colors & callouts · Select to enlarge
Pin Circuit Gauge Qualifier 1 CE903 (BU-OG) 22 2 CE904 (GN-VT) 22 3 GD120 (BK-GN) 20 14290 3 GD120 (BK-GN) 22 12638 4 * *

Original table alignment retained · Scroll horizontally if needed

Available Pigtail Kits
