Connector End View C312 - Inline

OEM Connector End Views

Source configuration appliesSource reference 3,879HTML edition
← Chapter contentsManual collection

MALE

Harness 14A005

FEMALE

Harness 14A411

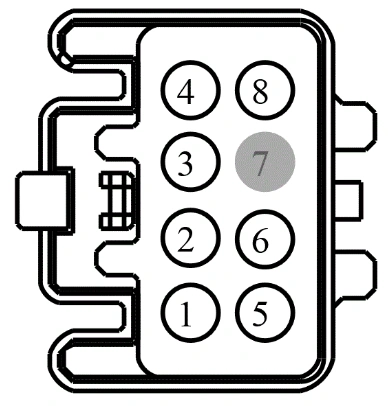

Connector End View C312 - Inline — original illustration 1, reference 3879Original colors & callouts · Select to enlarge

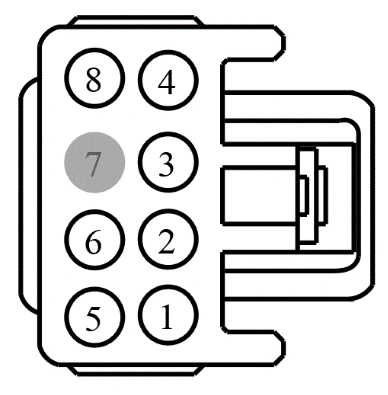

Connector End View C312 - Inline — original illustration 2, reference 3879Original colors & callouts · Select to enlarge

Pin

Circuit

Gauge

Qualifier

1

SBP29 (GY-RD)

14

14A005

1

SBP30 (BN-RD)

14

14A411

2

CPW25 (YE-BU)

22
