Connector End View C314 - Inline

OEM Connector End Views

Source configuration appliesSource reference 3,886HTML edition
← Chapter contentsManual collection

Description

INLINE

Color

GY

Base Part #

Service Pigtail

Not Available

MALE

Harness 14A005

FEMALE

Harness 14A411

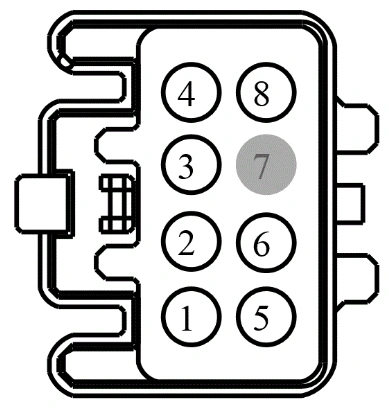

Connector End View C314 - Inline — original illustration 1, reference 3886Original colors & callouts · Select to enlarge

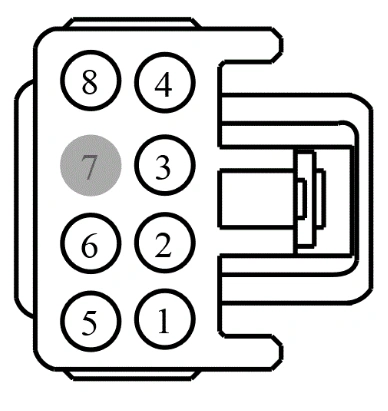

Connector End View C314 - Inline — original illustration 2, reference 3886Original colors & callouts · Select to enlarge
