Connector End View C340 - Inline — OEM Connector End Views · Reference 3903

14 CR111 (BN-WH) 18 14A005 15 RR105 (GY-YE) 18 14D230 15 RR111 (YE-VT) 18 14A005 16 * *

Original table alignment retained · Scroll horizontally if needed

Available Pigtail Kits

Service Part Number:

Pigtail Kit Part Number

7U2Z-14S411-KB

WPT-1393

Gauge:

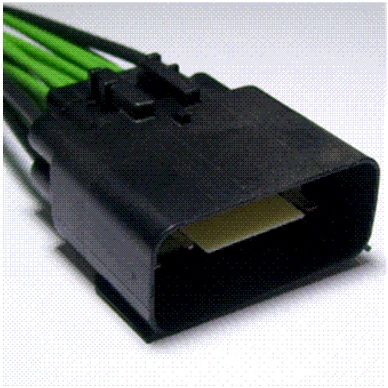

Connector End View C340 - Inline — original illustration 1, reference 3903Original colors & callouts · Select to enlarge

14 18

Pin material:

Tin & Silver

Cavities:

16

Vehicle Uses:

Connector - Inline

For Mating Connector Refer To WPT-1142

CONNECTOR VIEWS > CONNECTOR END VIEW C340 - INLINE

InlineC340

Description

INLINE

Color

Base Part #
