Connector End View C1046 - Inline

OEM Connector End Views

Source configuration appliesSource reference 4,069HTML edition
← Chapter contentsManual collection

Gauge:

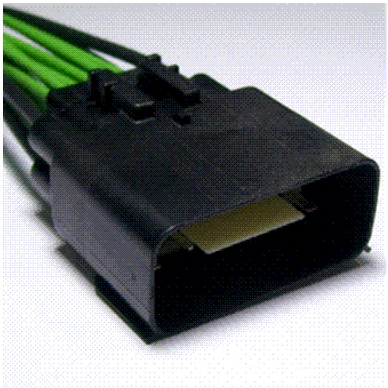

Connector End View C1046 - Inline — original illustration 1, reference 4069Original colors & callouts · Select to enlarge

14 18

Pin material:

Tin & Silver

Cavities:

16

Vehicle Uses:

Connector - Inline

For Mating Connector Refer To WPT-1142

CONNECTOR VIEWS > CONNECTOR END VIEW C1046 - INLINE

InlineC1046

Description

INLINE

Color

BK

Base Part #

Service Pigtail

Not Available

MALE

Harness 14B060

FEMALE

Harness 14290
