Check for Terminal Part Numbers

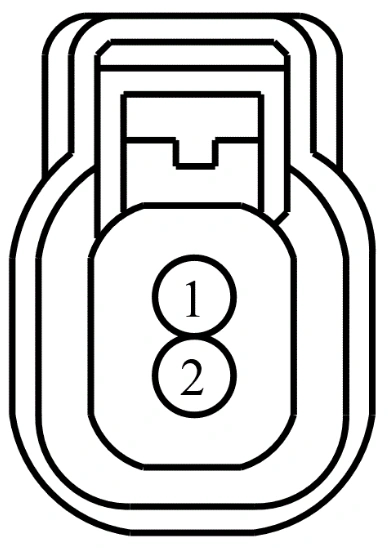

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | LE142 (GN-WH) | 20 | CTRL MOD. - POWERTRAIN # ENGINE OIL QUALITY SENSOR + | |
2 | RE454 (YE-GN) | 20 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2 |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-984 | Service Part Number: 3U2Z-14S411-BXAB Gauge: 16 Pin material: Silver Cavities: |
