CONNECTOR VIEWS > CONNECTOR END VIEW C2280E - BODY CONTROL MODULE

(BCM)

Connector:C2280E

Description

BODY CONTROL MODULE (BCM)

Color

BU

Harness

14A005

Base Part #

part# N/A

Service Pigtail

Not Available

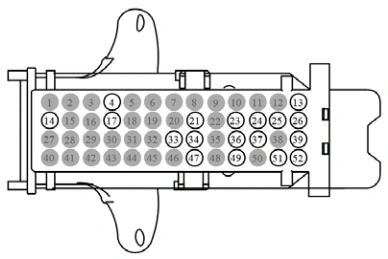

Connector End View C2280e - Body Control Module (Bcm) — original illustration 1, reference 4288Original colors & callouts · Select to enlarge

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

*

*

Not Used

2

*

*

Not Used

3

*

*

Not Used

4

CPK23 (YE)

26

SWITCH - HANDLE UNLOCK DRIVER

Ford_Mustang_all_2015-2017.pdf · source reference 4288
