Connector End View C2280f - Body Control Module (Bcm)

OEM Connector End Views

Source configuration appliesSource reference 4,292HTML edition
← Chapter contentsManual collection

52

CLS27 (GN-OG)

22

CTRL MOD. - TURN LAMP RIGHT REAR

CONNECTOR VIEWS > CONNECTOR END VIEW C2280F - BODY CONTROL MODULE

(BCM)

Connector:C2280F

Description

BODY CONTROL MODULE (BCM)

Color

BK

Harness

14290

Base Part #

part# N/A

Service Pigtail

Not Available

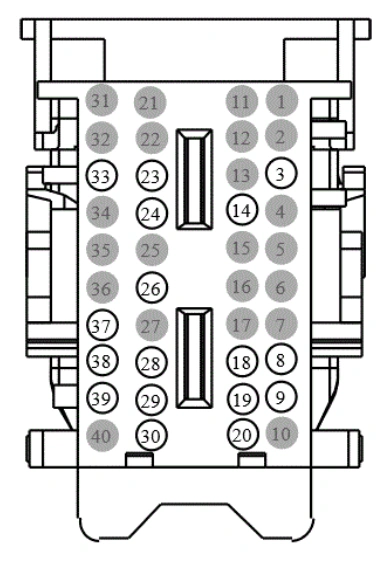

Connector End View C2280f - Body Control Module (Bcm) — original illustration 1, reference 4292Original colors & callouts · Select to enlarge
Ford_Mustang_all_2015-2017.pdf · source reference 4292
