Check for Terminal Part Numbers

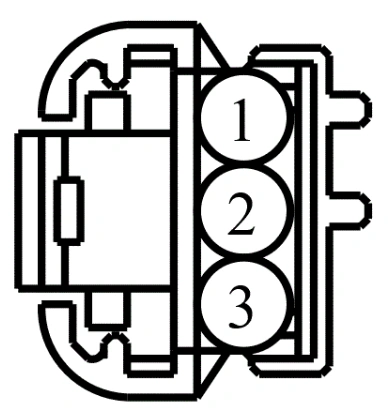

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | CR116 (BN-GN) 22 | CTRL MOD. - INDICATOR PASSENGER AIR BAG DEACTIVATE + | ||
2 | RR116 (GN-WH) | 22 | CTRL MOD. - INDICATOR PASSENGER AIR BAG DEACTIVATE - | |
3 | CBP19 (BN-WH) | 22 | FUSE - 19 OR CIRCUIT BREAKER |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-1182 | Service Part Number: BU2Z-14S411-AFA Gauge: 18 Pin material: Silver Cavities: 3 |
