Service Manual: ACCESSORY DRIVE - 2.3L ECOBOOST (231KW/314PS)

DESCRIPTION AND OPERATION > ACCESSORY DRIVE - COMPONENT LOCATION

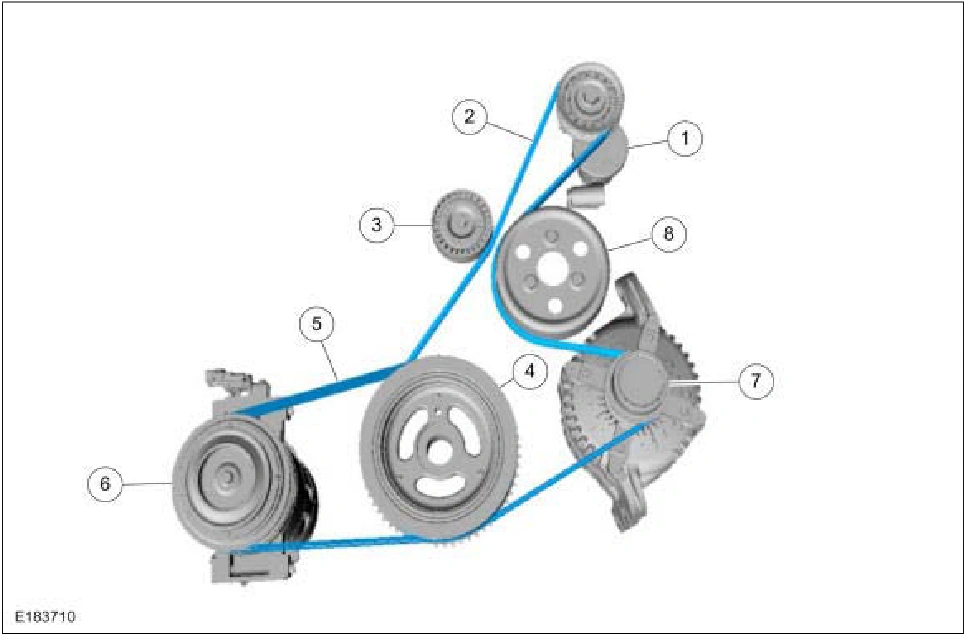

Fig 1: View Of Drive Belt Routing And Pulley

Accessory Drive — original illustration 1, reference 4521Original colors & callouts · Select to enlarge

Courtesy of FORD MOTOR COMPANY

Item

Description

1

Accessory drive belt tensioner

2

Accessory drive belt

3

Drive belt idler pulley assembly

4

Crankshaft belt pulley

5

Belt - A/C compressor

6

Pulley - A/C compressor

7

Generator pulley

8

Coolant pump pulley
