Ford Mustang

Service Manual: ACCESSORY DRIVE - 3.7L DURATEC (227KW/301PS)

DESCRIPTION AND OPERATION > ACCESSORY DRIVE - COMPONENT LOCATION

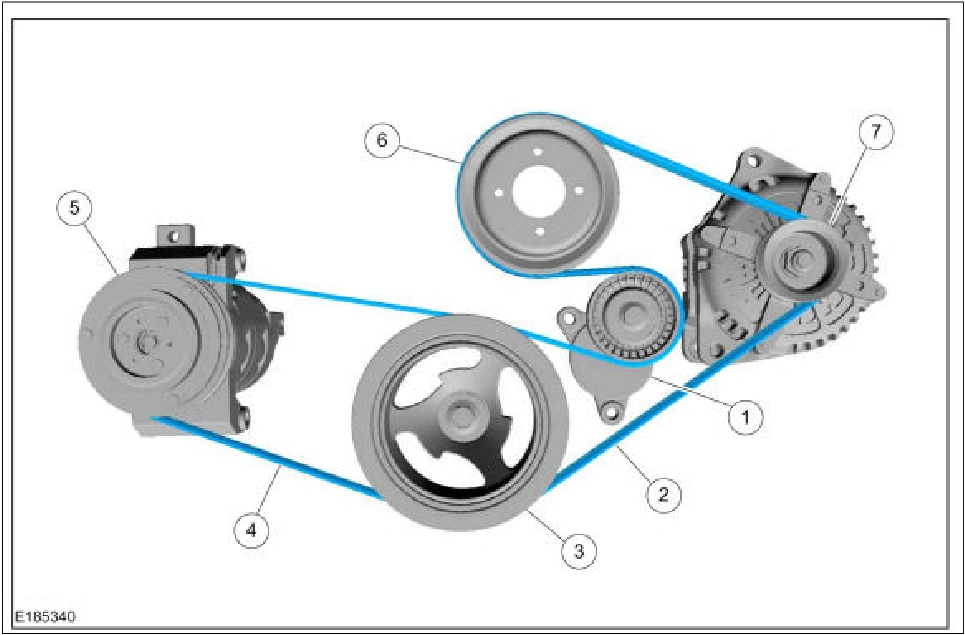

Fig 1: View Of Drive Belt Routing And Pulley

Accessory Drive — original illustration 1, reference 4535Original colors & callouts · Select to enlarge

Courtesy of FORD MOTOR COMPANY

Item

Description

1

Accessory drive belt tensioner

2

Accessory drive belt

3

Crankshaft belt pulley

4

Belt - A/C compressor

5

Pulley - A/C compressor

6

Coolant pump pulley

7

Generator pulley

DIAGNOSIS AND TESTING > ACCESSORY DRIVE > INSPECTION AND VERIFICATION

1.
