Cooling System Draining And Vacuum Filling — Engine Cooling - 2.3L EcoBoost (231kW & 314PS) · Reference 5868

Cooling System Draining And Vacuum Filling — original illustration 1, reference 5868Original colors & callouts · Select to enlarge

NOTE: If equipped.

12. Install the underbody shield.

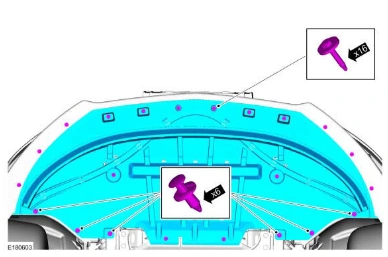

Cooling System Draining And Vacuum Filling — original illustration 2, reference 5868Original colors & callouts · Select to enlarge

NOTE: If equipped.

13. Install the underbody shield.

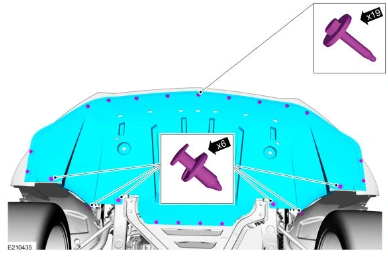

Cooling System Draining And Vacuum Filling — original illustration 3, reference 5868Original colors & callouts · Select to enlarge

14. Fill the degas bottle to the MAX FILL line.

15. Recommended coolant concentration is 48/52 to 50/50 engine coolant to distilled water (freeze

Ford_Mustang_all_2015-2017.pdf · source reference 5868
