Fuel System Pressure Check

Fuel System - General Information - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 6,104HTML edition
← Chapter contentsManual collection
Fuel System Pressure Check — original illustration 1, reference 6104Original colors & callouts · Select to enlarge

310-D009 (D95L-7211-A) Fuel Pressure Test Kit

Check

NOTE: This Fuel System Pressure Check is for the low pressure side of the system.

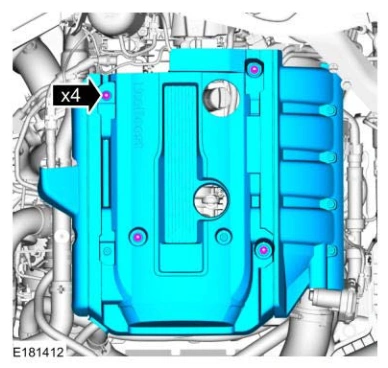

1. Remove the nuts and the engine appearance cover.

Torque

: 80 lb.in (9 Nm)

Fuel System Pressure Check — original illustration 2, reference 6104Original colors & callouts · Select to enlarge

2. Release the fuel system pressure. Refer to: Fuel System Pressure Release .

3. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

4. Disconnect the fuel jumper tube-to-high pressure pump quick release coupling. Refer to: Quick Release Coupling .

5. Install the Fuel Pressure Test Kit between the fuel jumper tube and the high pressure fuel pump.

Use Special Service Tool: 310-D009 (D95L-7211-A) Fuel Pressure Test Kit.
