Fuel Level Sensor — Installation — Fuel Tank And Lines - 3.7L Duratec (227kW & 301PS) · Reference 6210

Fuel Level Sensor — original illustration 1, reference 6210Original colors & callouts · Select to enlarge

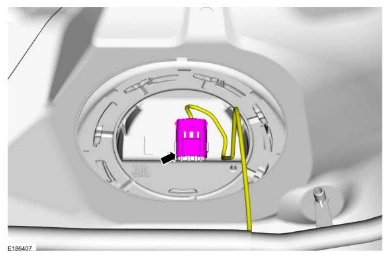

NOTE: Carefully install the Fuel Tank Sender Unit Socket to avoid damage to the fuel level sensor when removing the lock ring.

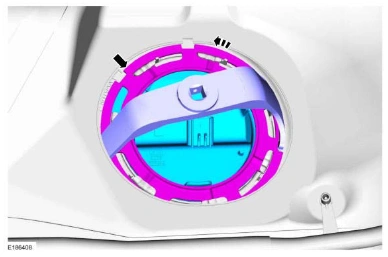

13. Using the lock ring wrench remove the Fuel Level Sensor lock ring.

Fuel Level Sensor — original illustration 2, reference 6210Original colors & callouts · Select to enlarge

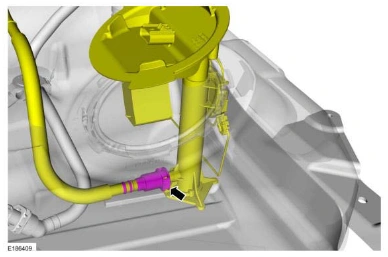

14. Disconnect the internal fuel tube-to-Fuel Level Sensor quick connect coupling. Refer to: QUICK RELEASE COUPLING - 3.7L Duratec (227kW/301PS).

Fuel Level Sensor — original illustration 3, reference 6210Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > FUEL LEVEL SENSOR > INSTALLATION

NOTE: Make sure the alignment tabs on the Fuel Level Sensor and the fuel tank
