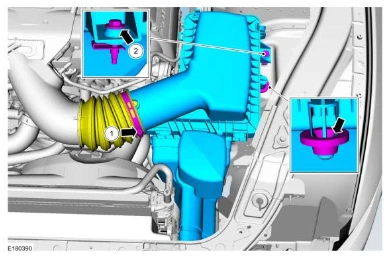

Air Cleaner Outlet Pipe — original illustration 1, reference 6265Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > AIR CLEANER > INSTALLATION

1. To install, reverse the removal procedure.

REMOVAL AND INSTALLATION > AIR CLEANER OUTLET PIPE > REMOVAL

NOTE: Removal steps in this procedure may contain installation details.

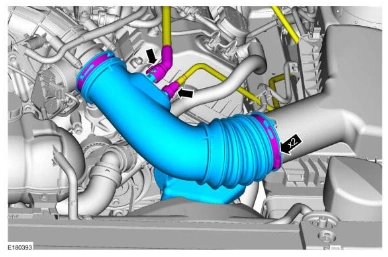

1. Disconnect and position aside the brake booster tube & the crankcase ventilation tube.

2. Loosen the 2 clamps and remove the air cleaner outlet pipe.

Torque: 48 lb.in (5.4 Nm)

Air Cleaner Outlet Pipe — original illustration 2, reference 6265Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > AIR CLEANER OUTLET PIPE > INSTALLATION
