Positive Crankcase Ventilation (PCV) Valve — Installation

Engine Emission Control - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 7,370HTML edition
← Chapter contentsManual collection

REMOVAL AND INSTALLATION > POSITIVE CRANKCASE VENTILATION (PCV)

VALVE > REMOVAL

NOTE: Removal steps in this procedure may contain installation details.

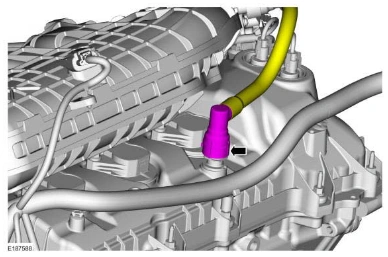

1. Disconnect the crankcase ventilation tube-to-PCV valve quick connect coupling. Refer to: QUICK RELEASE COUPLING .

Positive Crankcase Ventilation (PCV) Valve — original illustration 1, reference 7370Original colors & callouts · Select to enlarge

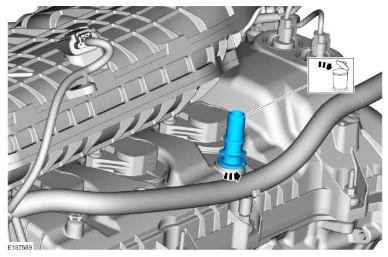

Rotate the PCV valve counterclockwise and remove the PCV valve. Discard the PCV valve.

Positive Crankcase Ventilation (PCV) Valve — original illustration 2, reference 7370Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > POSITIVE CRANKCASE VENTILATION (PCV)

VALVE > INSTALLATION

NOTE: A new PCV valve must be installed if removed. Damage will occur to the locking mechanism on the PCV valve.

1. Lubricate the new PCV valve O-ring seal with clean engine oil.
