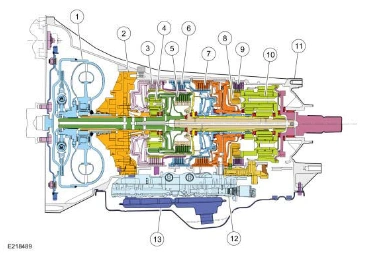

Item | Description |
|---|---|
1 | Torque converter |
2 | Front pump assembly |
3 | Forward clutch (A) |
4 | Front planetary gearset |
5 | Overdrive clutch (E) |
6 | Direct clutch (B) |
7 | Intermediate clutch (C) |
8 | One-Way Clutch (OWC) |
9 | Low/reverse clutch (D) |
10 | Rear planetary gearset |
11 | Transmission case |
12 | Main control assembly |
13 | Transmission fluid filter |
DIAGNOSIS AND TESTING > DIAGNOSIS BY SYMPTOM > SYMPTOM CHART(S)
Symptom Chart: Automatic Transmission
Diagnostics in this article assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods .
In most circumstances the PCM sets a DTC to help guide with diagnostics. Refer to the DTC Chart before using the Symptom Chart. The Condition column lists the vehicle condition. The Possible Sources column lists a detailed vehicle condition. The Action column lists the action to be performed to determine the cause of the condition. Each action lists the components that can cause the symptom and the individual components in that system. The components are listed in order of disassembly. Use the list of components and the required action to focus on disassembly inspections for the root cause of the concern.
Symptom Possible Sources Action
