Automatic Transmission External Controls

Source configuration appliesSource reference 9,081HTML edition
← Chapter contentsManual collection

Ford Mustang

Service Manual: AUTOMATIC TRANSMISSION EXTERNAL CONTROLS

DESCRIPTION AND OPERATION > EXTERNAL CONTROLS - COMPONENT LOCATION

Transmission Selector Lever and Cable

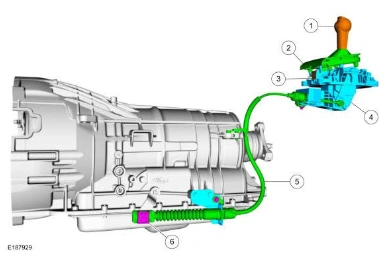

External Controls - Component Location — original illustration 1, reference 9081Original colors & callouts · Select to enlarge

Item

Description

1

Transmission selector lever knob

2

Transmission selector lever bezel

3

Brake shift interlock actuator

4

Transmission selector lever assembly

5

Transmission selector lever cable

6

Transmission selector lever cable adjuster

Transmission Paddle Switches

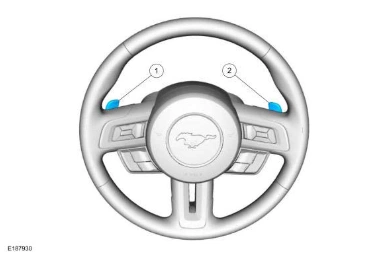

External Controls - Component Location — original illustration 2, reference 9081Original colors & callouts · Select to enlarge

Item

Description

1

Downshift paddle switch

2

Upshift paddle switch

DESCRIPTION AND OPERATION > EXTERNAL CONTROLS - OVERVIEW > OVERVIEW

Ford_Mustang_all_2015-2017.pdf · source reference 9081

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
