About This Manual — 2016 workshop reference 10

About This Manual — original illustration 1, reference 10Original colors & callouts · Select to enlarge

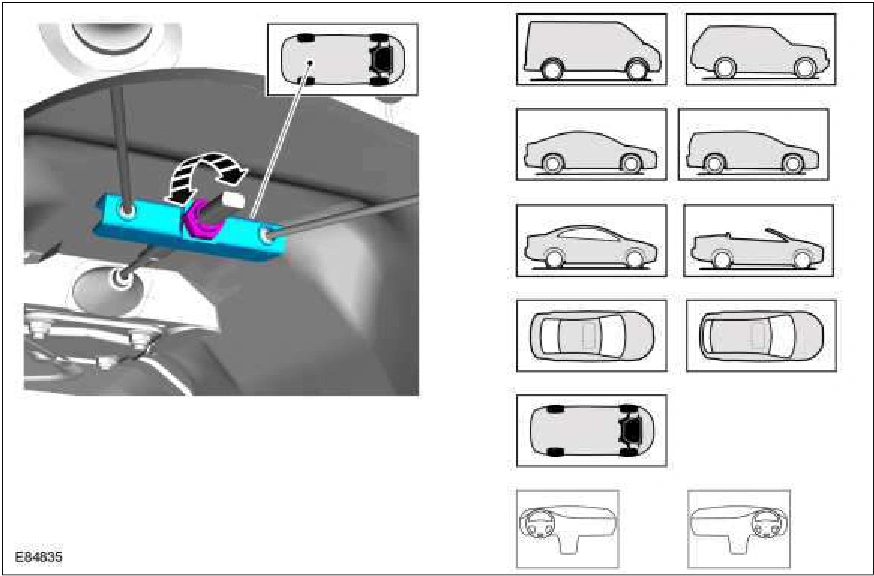

Example of service action icons pointing to highlighted components.

About This Manual — original illustration 2, reference 10Original colors & callouts · Select to enlarge

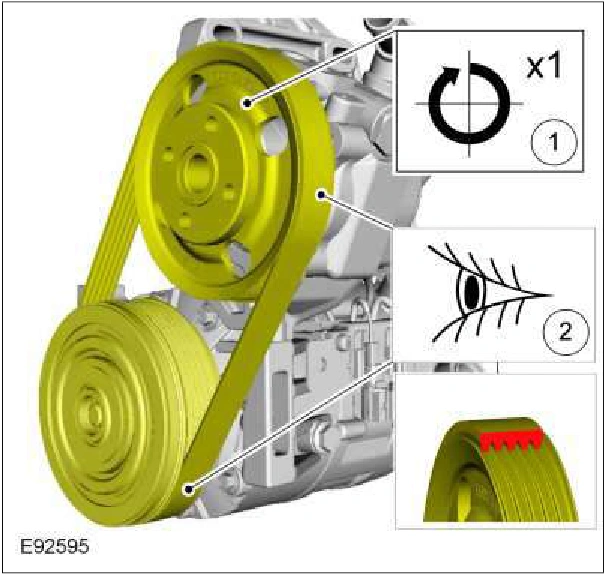

Movement arrows and service action icons show three dimensional or rotational movements.
