Heated Window Grid Wire Repair — 2016 workshop reference 1237

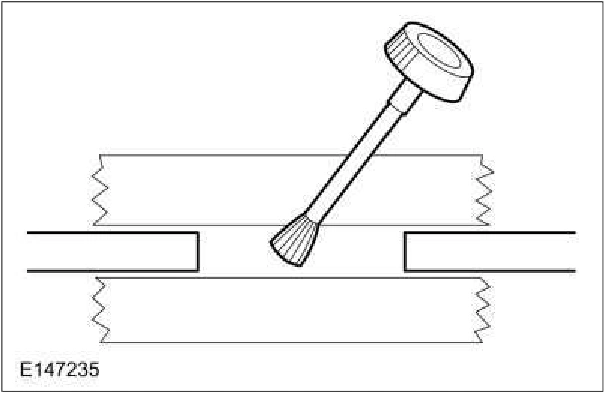

Heated Window Grid Wire Repair — original illustration 1, reference 1237Original colors & callouts · Select to enlarge

8. NOTICE: Be careful not to damage the antenna or heated window grid line with the razor blade. If

this occurs, additional repair may be necessary.

Remove any excess repair compound above or below the antenna or heated window grid line with a razor blade.

9. NOTE: The interior side of the antenna or heated grid lines are not painted, but due to the silver tarnishing tend to change the grid to a gold or brown color. The repair area will be bright silver and also tarnish over time to match the rest of the antenna or heated window grid.

Test the system for normal operation.
