Door Window Glass Adjustment - Convertible

Adjustment

NOTE: RH side shown, LH side similar.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: The rear quarter window glass must be aligned correctly before adjusting the front door window glass.

All adjustments

1. Check the rear quarter window glass adjustment. Refer to: Rear Quarter Window Glass Adjustment - Convertible (501-11 Glass, Frames and Mechanisms, General Procedures).

2. NOTE: The front door must be aligned correctly before adjusting the front door window glass.

Check the front door alignment. Refer to: Front Door Alignment (501-03 Body Closures, General Procedures).

3. Open the door.

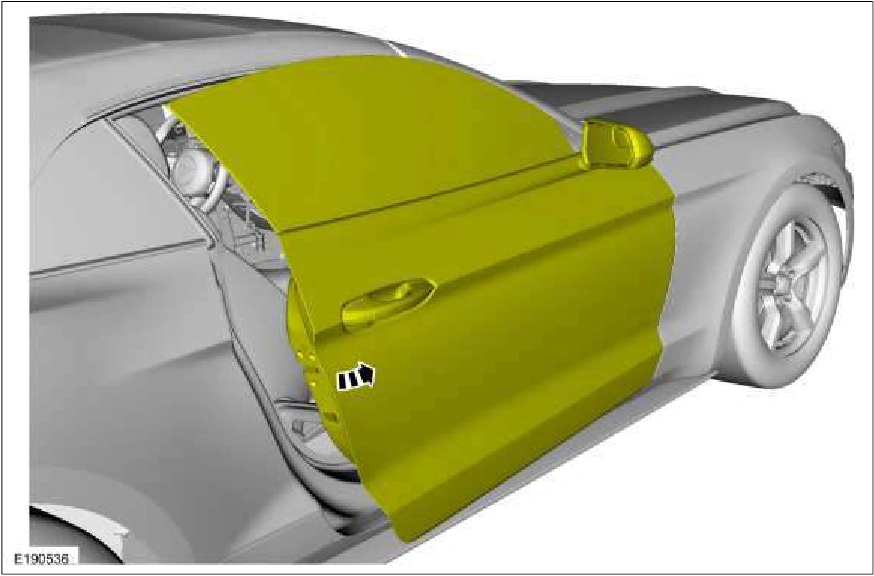

Door Window Glass Adjustment - Convertible — original illustration 1, reference 1259Original colors & callouts · Select to enlarge

4. Remove the front door speaker. Refer to: Front Door Speaker RH (415-00B Information and Entertainment System - General Information - Vehicles With: Touchscreen Display, Removal and Installation). Refer to: Front Door Speaker LH (415-00A Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC, Removal and Installation).

5. Remove the front door lower watershield.

Source reference 1259
