Wipers and Washers - System Operation and Component Description
System Operation

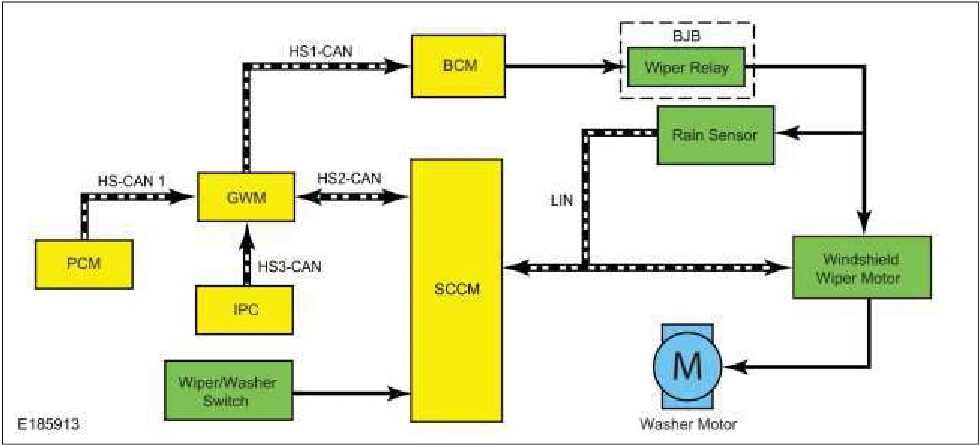

System Diagram
Network Message Chart
SCCM Network Input Messages
Broadcast Message | Originating Module | Message Purpose |
|---|---|---|
Vehicle speed | PCM | The SCCM uses vehicle speed information for the operation of the speed sensitive wiper function. |
Message center feature configuration | IPC | The SCCM uses the message center feature configuration to enable/disable the courtesy wipe and the rain sensitive wiper features. |
BCM Network Input Messages
Broadcast Message | Originating Module | Message Purpose |
|---|---|---|
Front wiper status | SCCM | The BCM uses the wiper status information for the operation of the wiper activated headlamps feature. |
Windshield Wipers
The wiper relay is energized when the ignition is on and provides voltage to the windshield wiper motor and the rain sensor.
