Convertible Top - Component Location

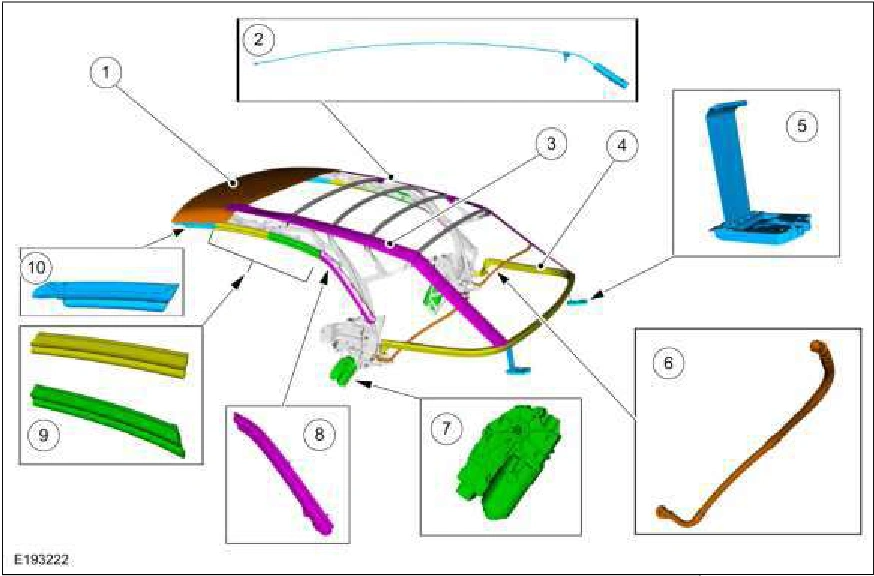

Frame Related Components
Item | Description | |
1 | Convertible top front panel | |
2 | Convertible top tension cable (routed through convertible top material) | |
3 | Stay pad | |
4 | Floating bow | |
5 | Convertible top tension belt (located in the luggage compartment) | |
6 | Rear glass tension rod | |
7 | Convertible top motor (Moveable Roof Control Module (MRCM)) | |
8 | Convertible top rear panel lower seal | |
9 | Convertible top center panel side weatherstrip (forward/rear) | |
10 | Convertible top front panel side weatherstrip | |
Sensors And Switches
