Airbag and Seatbelt Pretensioner Supplemental Restraint System (SRS) - Component Location
NOTE: LHD vehicle shown, RHD vehicle similar.

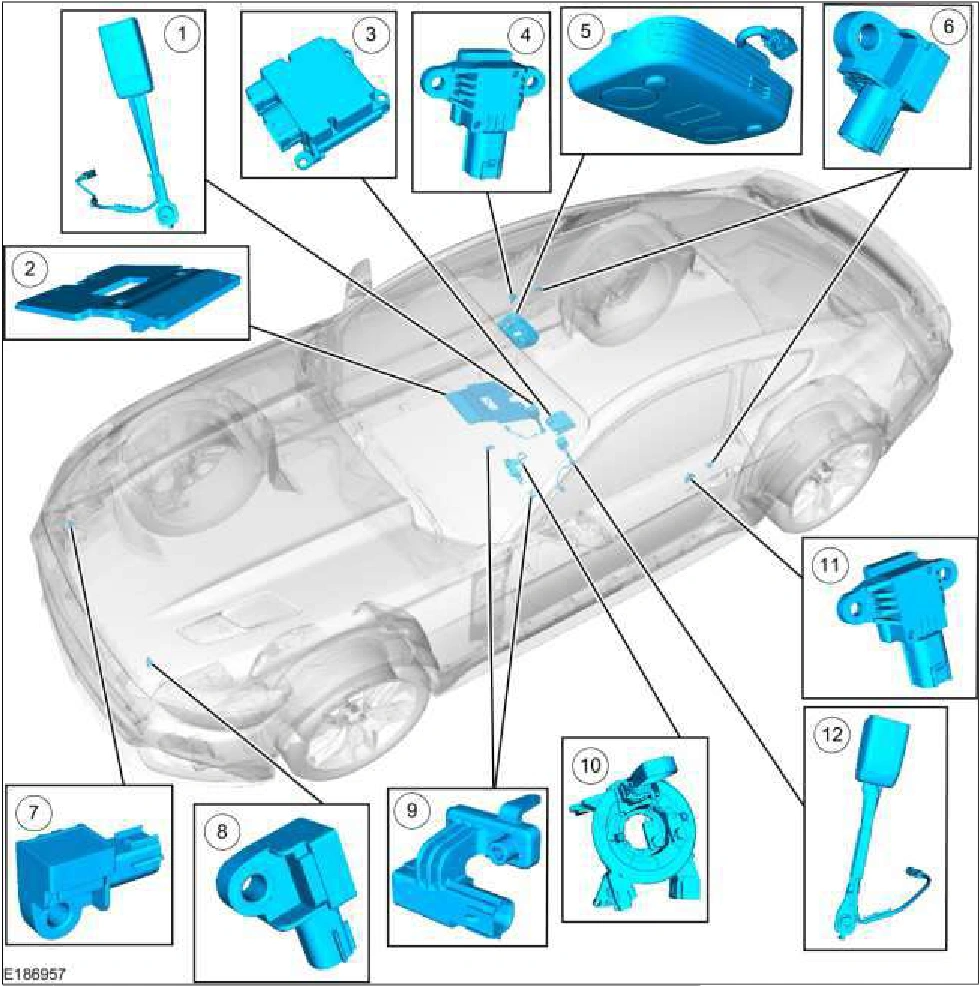

Item | Description | |
1 | Front passenger safety belt buckle (includes buckle switch and Belt Tension Sensor (BTS)) | |
2 | OCSM (includes OCS sensor and gel-filled bladder) | |
3 | RCM | |
4 | Passenger front door side impact sensor | |
5 | Overhead console (includes PAD indicator) | |
6 | LH and RH C-pillar side impact sensors (coupe only) | |
7 | RH front impact severity sensor | |
