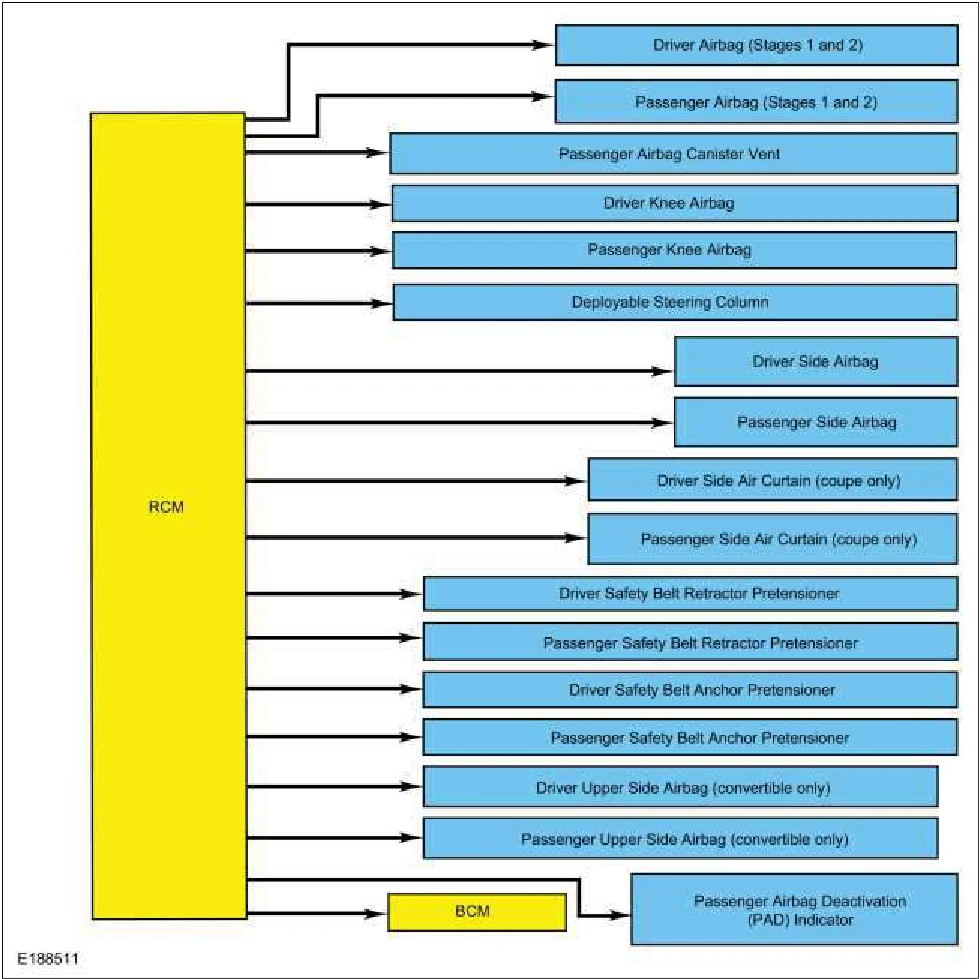

Network Message Chart - Supplemental Restraint System (SRS)
Module Network Input Messages - RCM
Broadcast Message | Originating Module | Message Purpose |
|---|---|---|
eCall confirmation | APIM | Used for SYNC® 911 Assist™ operation. Indicates whether eCall notification is in progress after an airbag deployment. |
Ignition status | BCM | Used to qualify certain faults during RCM self-diagnostics. |
Airbag warning indicator status | IPC | Confirms airbag warning indicator status to the RCM. |
OCS vehicle calibration data | OCSM | Shares application-specific data for comparison purposes to make sure the correct OCSM and RCM are installed. |
OCS fault status | OCSM | Indicates an OCS fault, if present. |
OCS sensor data | OCSM | OCS sensor readings. |
OCS serial number | OCSM | OCSM serial number. |
Vehicle configuration data | BCM | Used for verifying vehicle configuration data. |
