Yes | GO to A12 |
|---|---|
No | GO to A5 |
A5 CHECK FOR A SHORT BETWEEN PASSENGER AIRBAG STAGE 1 CIRCUITS
Ignition OFF. Depower the SRS. REFER to: Supplemental Restraint System (SRS) Depowering (501-20B Supplemental Restraint System, General Procedures). Measure:
Click to display connectors
Positive Lead | Measurement / Action | Negative Lead |
|---|---|---|
C256-1 | C256-2 |
Is the resistance greater than 10,000 ohms?
Yes | GO to A13 |
|---|---|
No | GO to A6 |
A6 CHECK THE RCM (RESTRAINTS CONTROL MODULE) FOR LOW RESISTANCE

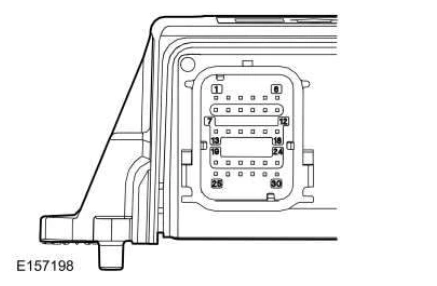

Disconnect RCM C310A and C310B. Measure:
Positive Lead | Measurement / Action | Negative Lead |
|---|---|---|
C310A, pin 28, component side | C310A, pin 27, component side |
Is the resistance greater than 10,000 ohms?
Yes | REPAIR the passenger airbag stage 1 circuits for a short together. Refer to Wiring Diagrams Cell 5 for schematic and connector information. GO to A18 |
|---|---|
No | GO to A13 |
A7 CHECK THE PASSENGER AIRBAG STAGE 1 CIRCUITS FOR AN OPEN
Ignition OFF. Depower the SRS. REFER to: Supplemental Restraint System (SRS) Depowering (501-20B Supplemental Restraint System, General Procedures). Disconnect Passenger Airbag C256. Disconnect RCM C310A and C310B. Measure:
Click to display connectors
Positive Lead | Measurement / Action | Negative Lead |
|---|---|---|
C310A-27 | C256-2 | |
C310A-28 | C256-1 |
Are the resistances less than 0.5 ohm?
Yes | GO to A8 |
|---|
