Sealer, Underbody Protection Material and Adhesives

501-25 Body Repairs - General Information 2016 Mustang

Description and Operation Procedure revision date: 05/8/2014

Adhesives

NOTE: The following illustrations are examples of structural adhesive application and are not all inclusive.

The correct adhesive bonding is essential to repairing the vehicle correctly. Adhesives are used in many areas of the body structure in place of welding. In addition to providing a structural bond between component, adhesives can also help prevent wind noise, water leaks, exhaust fumes and dust from entering the vehicle. They also provide anti-corrosion barriers.

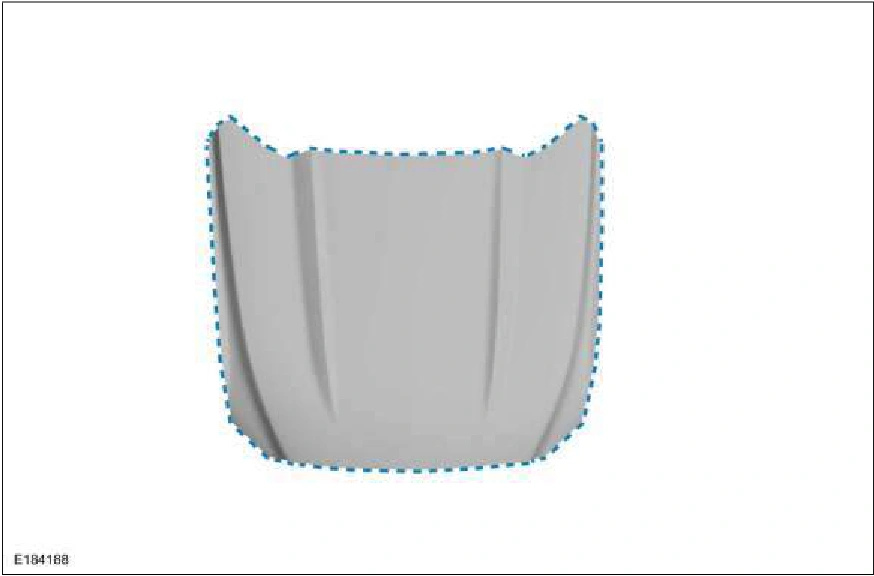

Hood

NOTE: Adhesive applied between inner and outer panels prior to assembly.

Sealer, Underbody Protection Material and Adhesives — original illustration 1, reference 2189Original colors & callouts · Select to enlarge

Front Door

NOTE: Adhesive applied between inner and outer panels prior to assembly.

Source reference 2189
