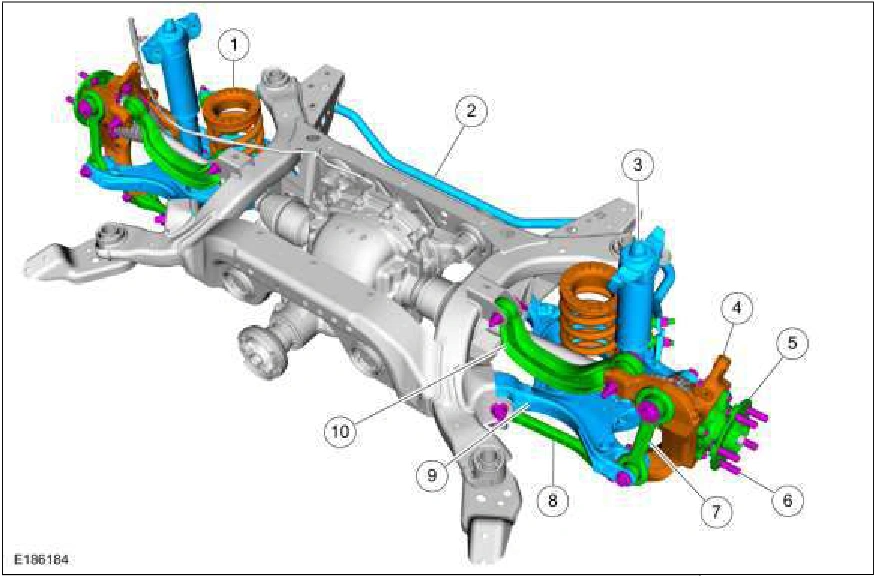

Rear Suspension - Component Location
Item | Description | |
1 | Coil spring | |
2 | Stabilizer and links | |
3 | Shock absorber | |
4 | Wheel knuckle | |
5 | Wheel bearing and wheel hub assembly | |
6 | Wheel studs | |
7 | Lower arm vertical link | |
8 | Toe link | |
9 | Lower arm and bushing assembly | |
10 | Upper arm | |
