204-04B Tire Pressure Monitoring System (TPMS) 2016 Mustang

Description and Operation Procedure revision date: 07/28/2014

Tire Pressure Monitoring System (TPMS) - Component Location

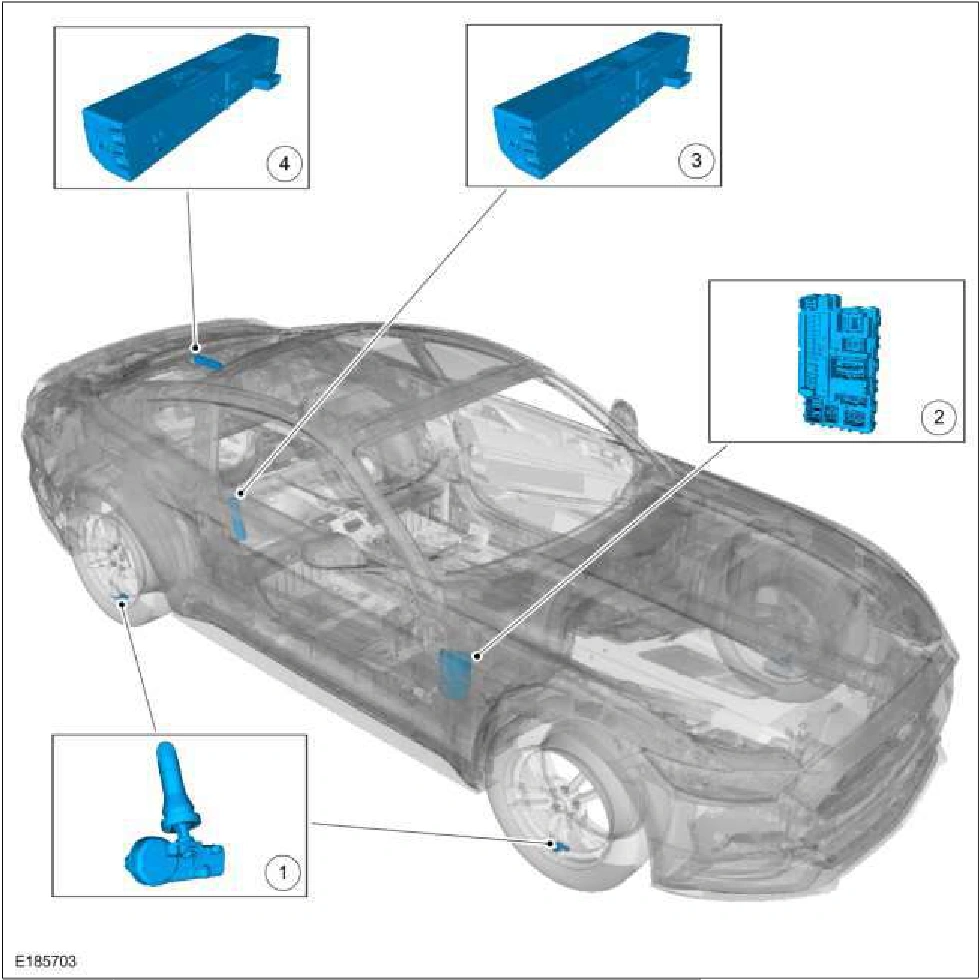

Tire Pressure Monitoring System (TPMS) - Component Location — original illustration 1, reference 2562Original colors & callouts · Select to enlarge
Item	Description
1	TPMS sensor (4 required)
2	BCM
3	RTM, convertible (1 required)
4	RTM, coupe (1 required)

Source reference 2562
