2016 workshop · Driveline

Driveshaft Angle Measurement

205-01 Driveshaft

2016 MustangReference 2,645 / 6,619HTML edition
← Chapter contentsProcedure contents

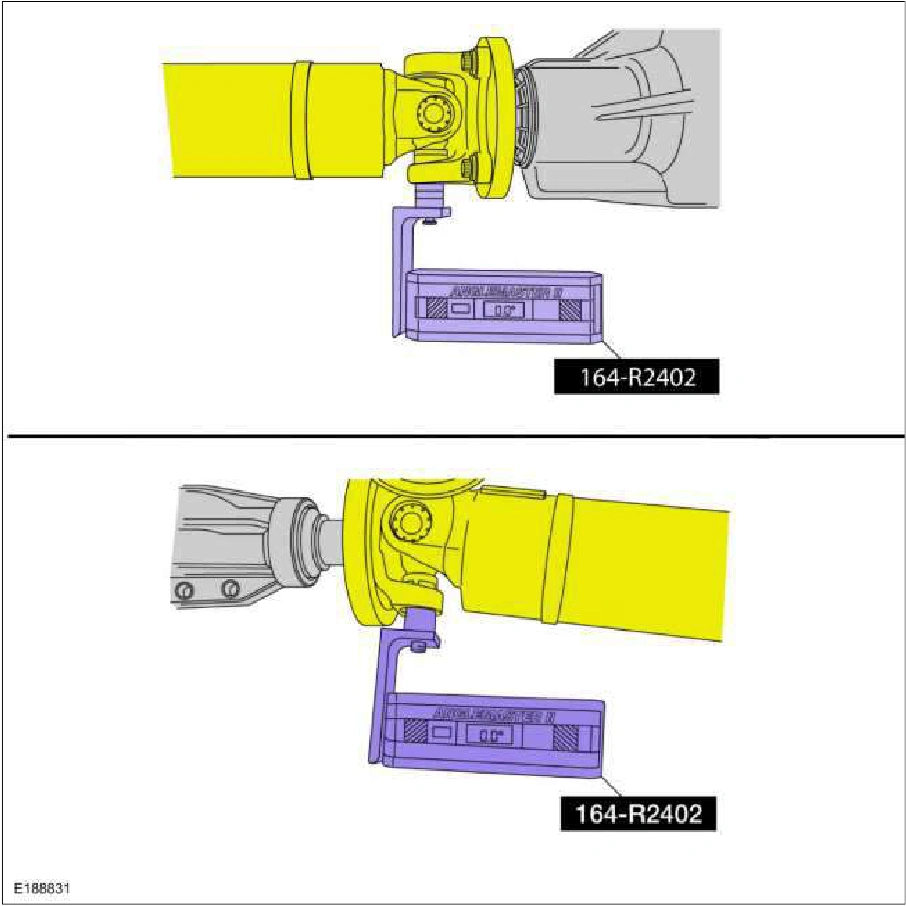

Driveshaft Angle Measurement — original illustration 1, reference 2645Original colors & callouts · Select to enlarge

3. Special Tool(s): Anglemaster II Driveline Inclinometer/Protractor 164-R2402. Measure the slope of the connecting component. Record the measurement of the component angle as angle B.

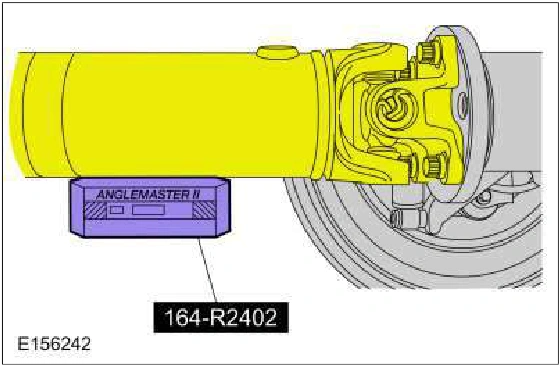

Driveshaft Angle Measurement — original illustration 2, reference 2645Original colors & callouts · Select to enlarge

Multiple piece driveshafts

4. NOTE: Repeat this step for each center support bearing on the driveshaft.

NOTE: It is not necessary to remove the U-joint snap ring, if equipped, for these measurements.

Special Tool(s): Anglemaster II Driveline Inclinometer/Protractor 164-R2402. Measure the slope of the components
