Brake Caliper - Vehicles With: 2-Piston Brake Caliper — 2016 workshop reference 2802

206-03 Front Disc Brake 2016 Mustang

Removal and Installation Procedure revision date: 02/11/2015

Brake Caliper - Vehicles With: 2-Piston Brake Caliper

Base Part Number: 2B302

Removal

NOTICE: Make sure that all openings are sealed.

NOTICE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the wheel and tire. Refer to: Wheel and Tire (204-04A Wheels and Tires, Disassembly and Assembly).

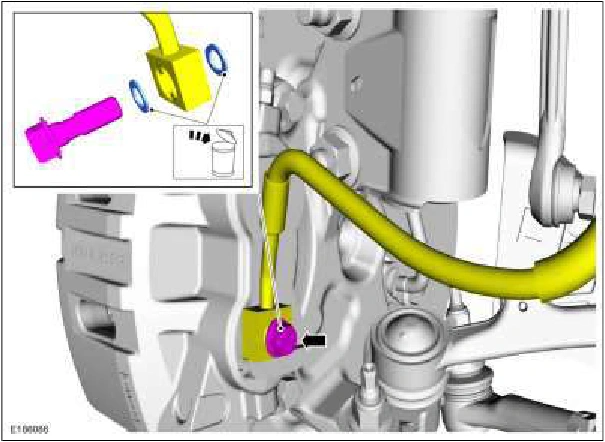

2. Remove the brake caliper flow bolt and disconnect the brake hose. Discard the washers. Torque : 30 lb.ft (40 Nm)

Brake Caliper - Vehicles With: 2-Piston Brake Caliper — original illustration 1, reference 2802Original colors & callouts · Select to enlarge

3. Remove the 2 guide pin bolts and the brake caliper. Torque : 24 lb.ft (32 Nm)
