Anti-Lock Brake System (ABS) and Stability Control - System Operation and Component Description
System Operation

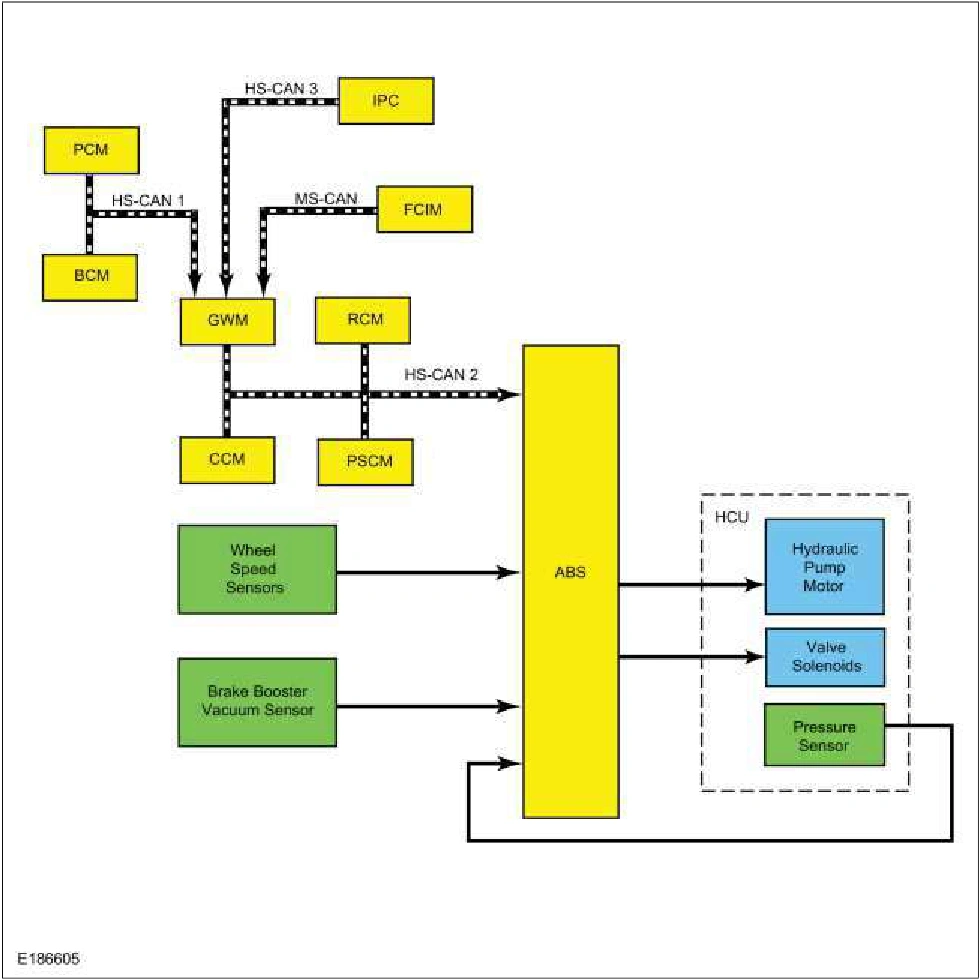

System Diagram
Network Message Chart
Module Network Input Messages - ABS Module
Broadcast Message | Originating Module | Message Purpose |
|---|---|---|
Accelerator pedal position | PCM | This message is sent to the GWM and then to the ABS module. The ABS module uses accelerator pedal position information for correct operation of the traction control, ESC and hill start assist features. |
