Manual Transmission - Component Location — 2016 workshop reference 3033

308-03A Manual Transmission - 6-Speed Manual Transmission - 2016 Mustang MT82

Procedure revision date:

Description and Operation

08/8/2014

Manual Transmission - Component Location

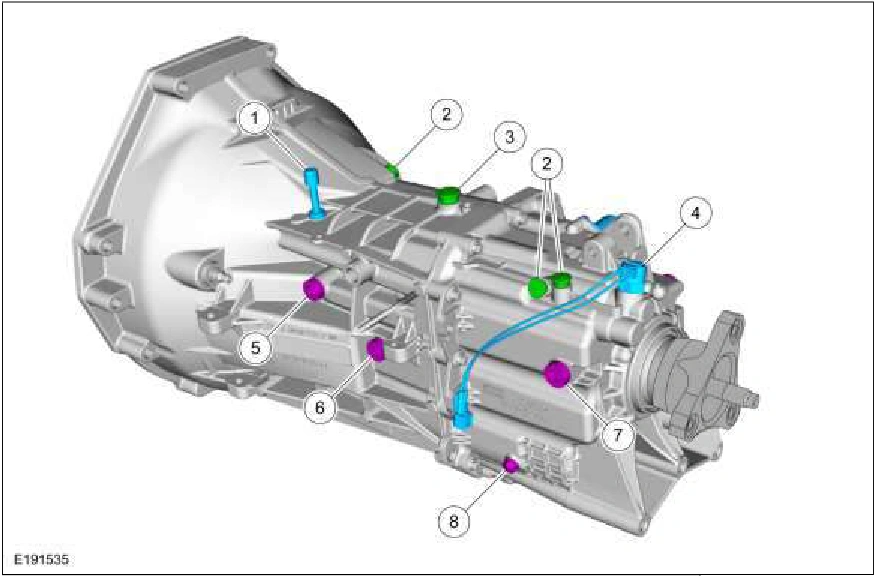

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3033Original colors & callouts · Select to enlarge
Item	Description
1	Transmission vent
2	Shift rail detents
3	Shift shaft stop pin
4	Reverse lamp switch
5	5th/6th gear shift fork pivot bolt
6	3rd/4th gear shift fork pivot bolt
7	Reverse shift fork pivot bolt
8	Reverse idler gear bracket bolt
