Description and Operation

09/22/2015

Manual Transmission - System Operation and Component Description

System Operation

First Gear Powerflow

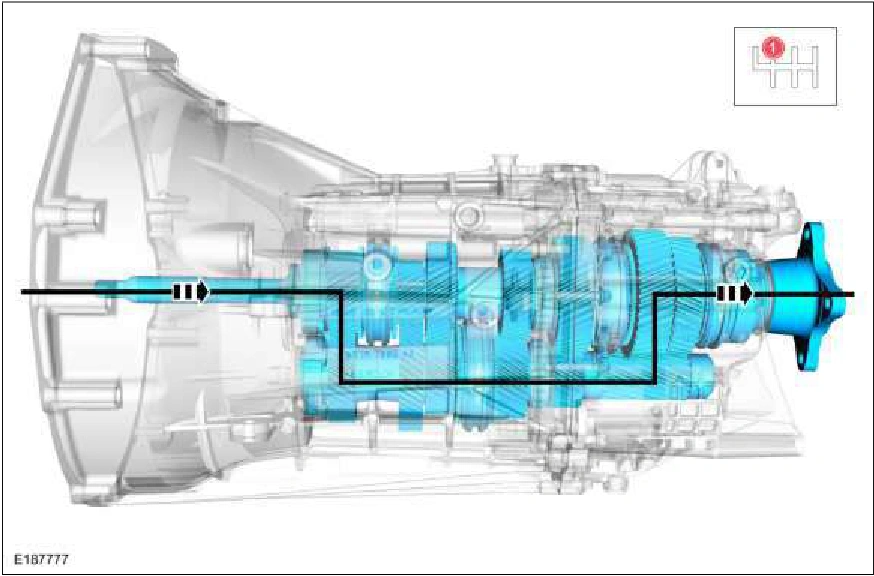

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3037Original colors & callouts · Select to enlarge

In first gear, the shift shaft assembly pulls the 1st/2nd shift rail and fork back to slide the 1st/2nd synchronizer sleeve onto 1st gear to lock it to the output shaft. Torque is transferred from the input shaft to the counter shaft through 5th gear and from the counter shaft to the output shaft through 1st gear.
