Accelerator Pedal

310-02 Acceleration Control 2016 Mustang

Removal and Installation Procedure revision date: 08/5/2015

Base Part Number: 9735

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: To prevent setting Diagnostic Trouble Codes (DTCs), make sure the ignition switch is in the OFF position prior to disconnecting the accelerator pedal electrical connector.

1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in

section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).

2. Disconnect the accelerator pedal sensor electrical connector. Remove the 3 nuts and the accelerator pedal and sensor assembly. Torque : 80 lb.in (9 Nm)

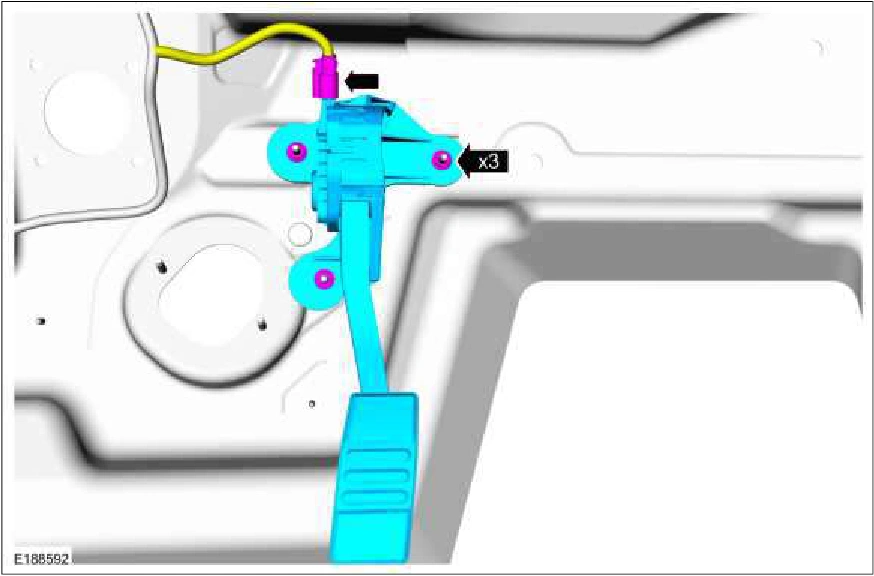

Accelerator Pedal — original illustration 1, reference 3299Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

Source reference 3299
