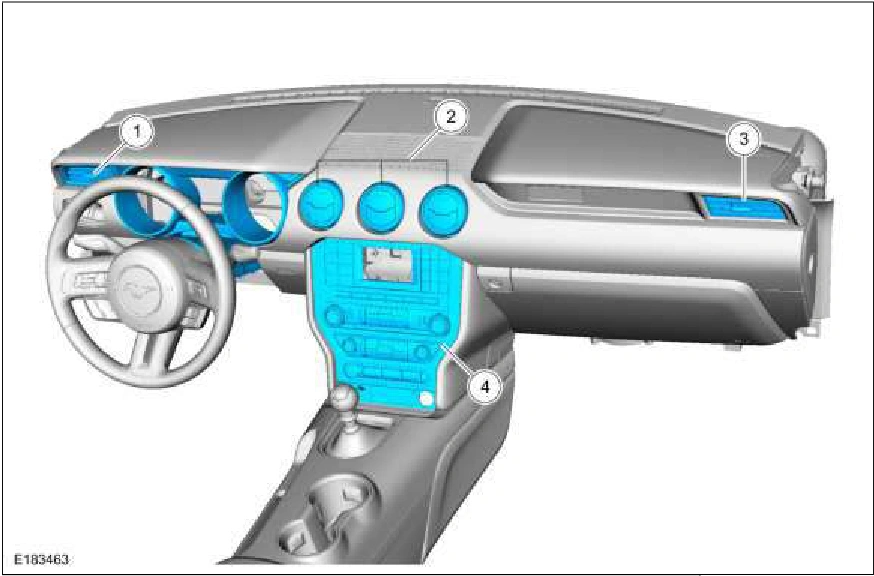

Climate Control System - Vehicles With: Electronic Manual Temperature Control (EMTC) - Component
Location
NOTE: 5.0L shown all other engines similar.
Item | Description | |
1 | Driver Side Register | |
2 | Center Registers | |
3 | Passenger Side Register | |
4 | FCIM | |
