14. Set the A/C to the ON position.

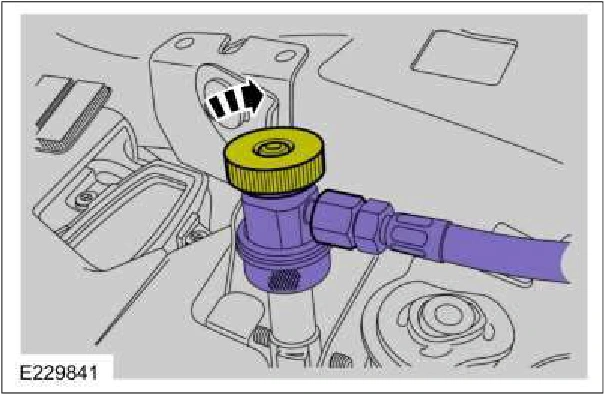

15. Open the high-pressure service valve.

Fluorescent Dye Leak Detection — original illustration 1, reference 3609Original colors & callouts · Select to enlarge

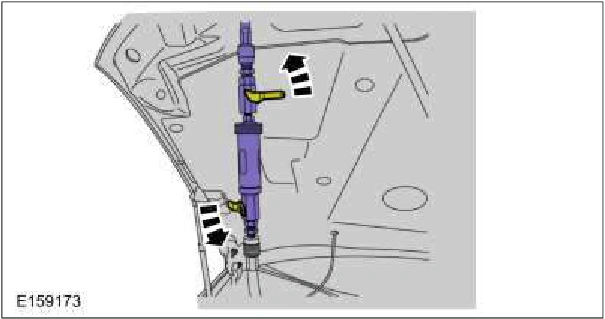

16. NOTE: To prevent pressure spike/liquid slug, slowly open the R-134a Fluorescent Dye Injector valves and inject the fluorescent dye into the refrigerant system.

Open the R-134a Fluorescent Dye Injector valves and inject the fluorescent dye into the refrigerant system.

Fluorescent Dye Leak Detection — original illustration 2, reference 3609Original colors & callouts · Select to enlarge

17. Close the high-pressure service valve to allow the pressure inside the R-134a Fluorescent Dye Injector to equalize with the suction side of the refrigerant system.

Fluorescent Dye Leak Detection — original illustration 3, reference 3609Original colors & callouts · Select to enlarge

18. NOTE: Close the valves on the R-134a Fluorescent Dye Injector while the A/C compressor is operating.
