Air Conditioning (A/C) Pressure Relief Valve - 3.7L Duratec (227kW/301PS)

Base Part Number: 19D594

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Recover the refrigerant. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging (412-00 Climate Control System - General Information, General Procedures).

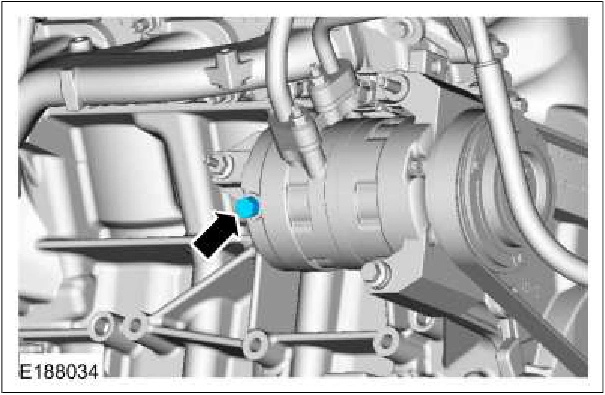

2. Remove the A/C compressor pressure relief valve. Torque : 89 lb.in (10 Nm)

Air Conditioning (A/C) Pressure Relief Valve - 3.7L Duratec (227kW/301PS) — original illustration 1, reference 3683Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

2. Add the correct amount of clean Polyalkylene Glycol (PAG) oil to the refrigerant system. Refer to: Refrigerant Oil Adding (412-00 Climate Control System - General Information, General Procedures).

Source reference 3683
