2016 workshop · Climate Control System

Climate Control Housing - 2.3L EcoBoost (201kW/273PS)

412-00 Climate Control System - General Information

2016 MustangReference 3,707 / 6,619HTML edition
← Chapter contentsProcedure contents
Climate Control Housing - 2.3L EcoBoost (201kW/273PS) — original illustration 1, reference 3707Original colors & callouts · Select to enlarge

5. Remove the bolt and washer. Torque : 62 lb.in (7 Nm)

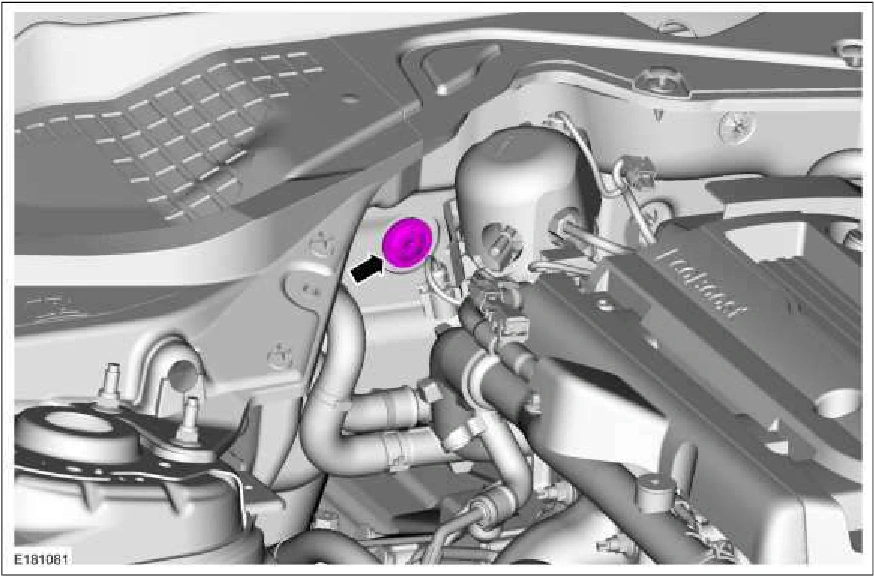

Climate Control Housing - 2.3L EcoBoost (201kW/273PS) — original illustration 2, reference 3707Original colors & callouts · Select to enlarge

6. Remove the bolt and washer. Torque : 62 lb.in (7 Nm)
