413-06 Horn 2016 Mustang

Description and Operation Procedure revision date: 07/14/2014

Horn - Component Location

Base Part Number: 13801

Horn

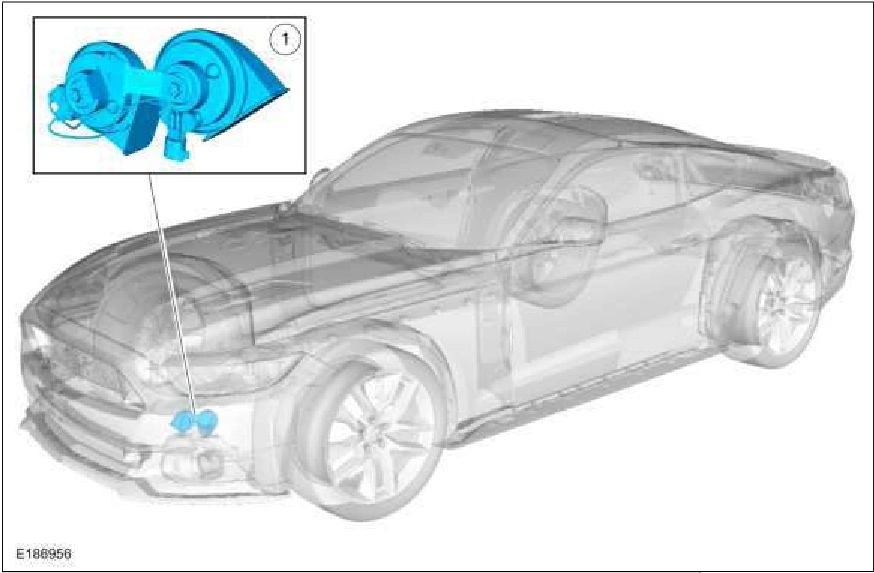

Horn - Component Location — original illustration 1, reference 3918Original colors & callouts · Select to enlarge

Item

Description

1

Horn

Comments:

Located behind LH fender splash shield.

Copyright © 2016 Ford Motor Company
