413-06 Horn 2016 Mustang

Removal and Installation Procedure revision date: 03/2/2015

Horn

Base Part Number: 13801

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the LH fender splash shield. Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).

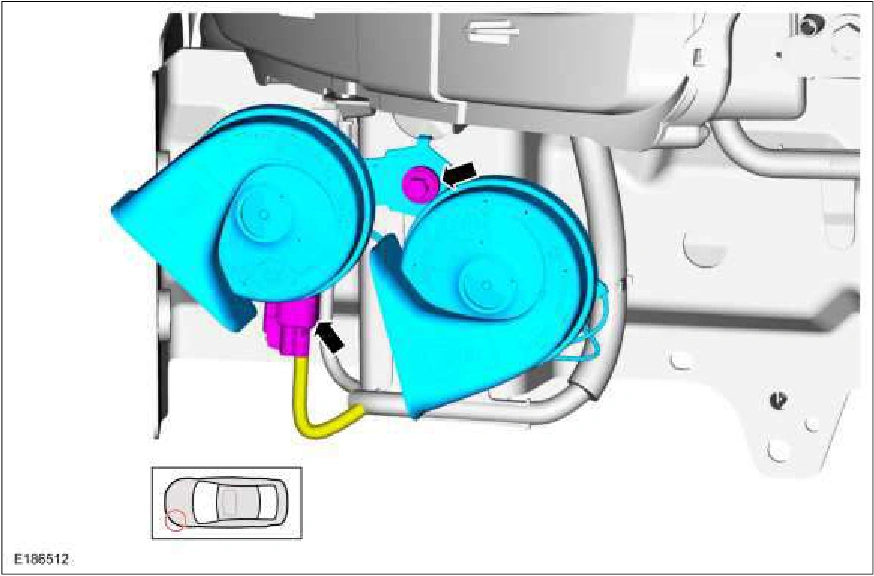

2. Disconnect the electrical connector, remove the bolt and the horn. Torque : 106 lb.in (12 Nm)

Horn — original illustration 1, reference 3930Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

Copyright © 2016 Ford Motor Company
