415-00A General Information -Vehicles With AM-FM-CD-SYNC — original illustration 1, reference 4277Original colors & callouts · Select to enlarge

13. Remove the instrument panel center finish panel. Refer to: Instrument Panel Center Finish Panel (501-12 Instrument Panel and Console, Removal and Installation).

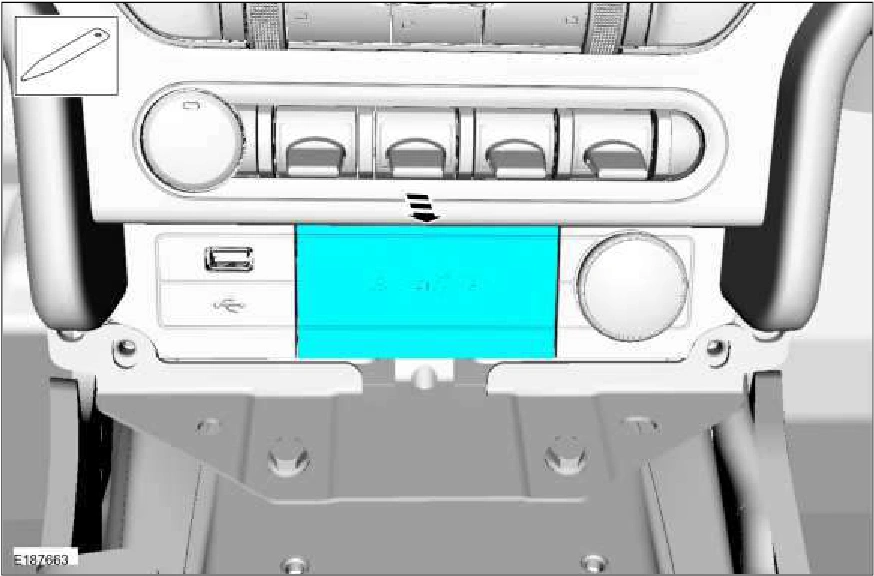

14. Remove the trim cover. Use the General Equipment: Interior Trim Remover

415-00A General Information -Vehicles With AM-FM-CD-SYNC — original illustration 2, reference 4277Original colors & callouts · Select to enlarge

15. Remove the bolts and the FCIM.

Disconnect the electrical connectors. Torque : 22 lb.in (2.5 Nm)
