Information and Entertainment System - Component Location — 2016 workshop reference 4293

415-00B Information and Entertainment System - General Information - 2016 Mustang Vehicles With: Touchscreen Display

Procedure revision date:

Description and Operation

10/26/2015

Information and Entertainment System - Component Location

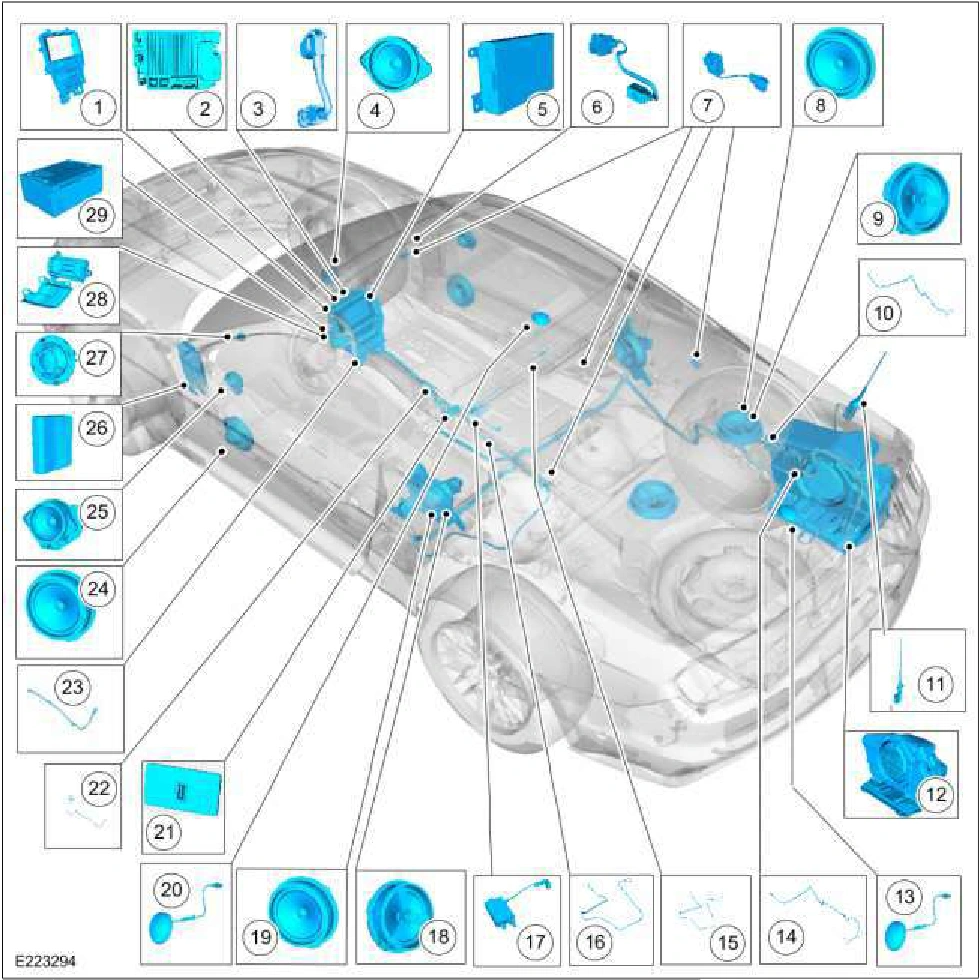

415-00B General Information -Vehicles With Touchscreen Display — original illustration 1, reference 4293Original colors & callouts · Select to enlarge
Item	Description
1	FCIM
2	APIM
3	LVDS (Low Voltage Differential Signaling) cable
4	Center instrument panel speaker
5	8-inch (203 mm) FDIM
6	SYNC® microphone
7	ANC microphones - 2.3L only (coupe: located in the overhead console and center rear of the headliner) / (convertible: located in the overhead console, RHR quarter panel, and LHR quarter panel)

Source reference 4293
