A-Pillar Speaker

415-00B Information and Entertainment System - General Information - 2016 Mustang Vehicles With: Touchscreen Display

Procedure revision date:

Removal and Installation

07/29/2015

Removal

1. Remove the A-Pillar trim panel. Refer to: A-Pillar Trim Panel - Convertible (501-05 Interior Trim and Ornamentation, Removal and Installation). Refer to: A-Pillar Trim Panel - Coupe (501-05 Interior Trim and Ornamentation, Removal and Installation).

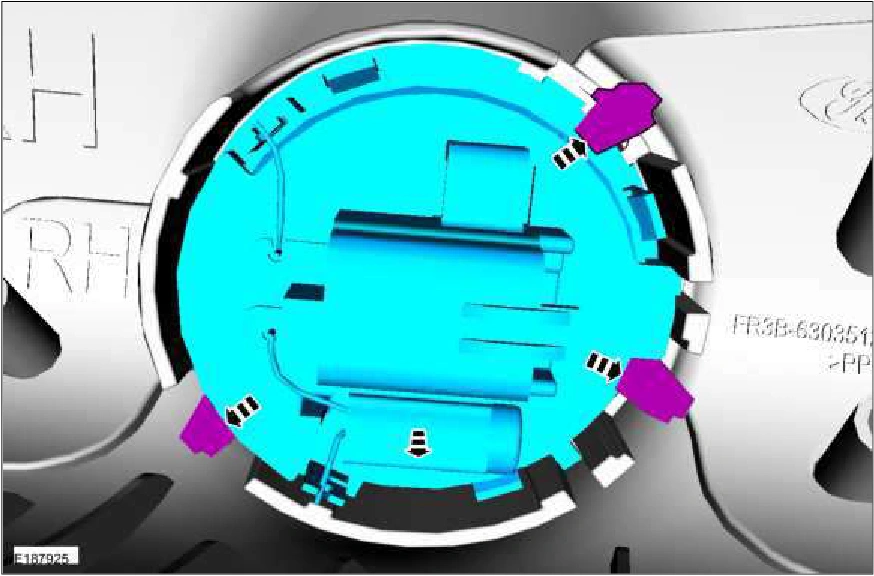

2. Release the tabs and remove the A-Pillar speaker.

415-00B General Information -Vehicles With Touchscreen Display — original illustration 1, reference 4551Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.
