415-00B Information and Entertainment System - General Information - 2016 Mustang Vehicles With: Touchscreen Display

Procedure revision date:

Removal and Installation

08/17/2015

Front Display Interface Module (FDIM)

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the FCIM. Refer to: Front Control/Display Interface Module (FCDIM) (415-00 Information and Entertainment System - General Information - Vehicles With: Touchscreen Display) .

2. Remove the bolts and the FDIM. Disconnect the electrical connectors. Torque : 22 lb.in (2.5 Nm)

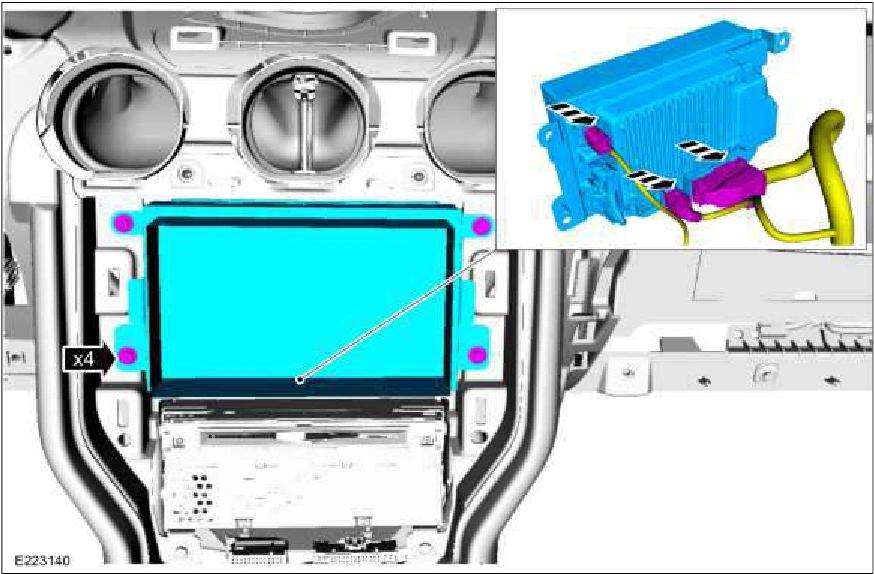

415-00B General Information -Vehicles With Touchscreen Display — original illustration 1, reference 4576Original colors & callouts · Select to enlarge

3. Remove the screws, disconnect the electrical connector and separate the APIM from the FDIM. Torque : 9 lb.in (1 Nm)

Source reference 4576
