Front Door Speaker RH

415-00B Information and Entertainment System - General Information - 2016 Mustang Vehicles With: Touchscreen Display

Procedure revision date:

Removal and Installation

05/12/2015

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the front door trim panel. Refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

Midwoofer speaker

2. Remove the bolts and the door midwoofer speaker. Disconnect the electrical connector. Torque : 22 lb.in (2.5 Nm)

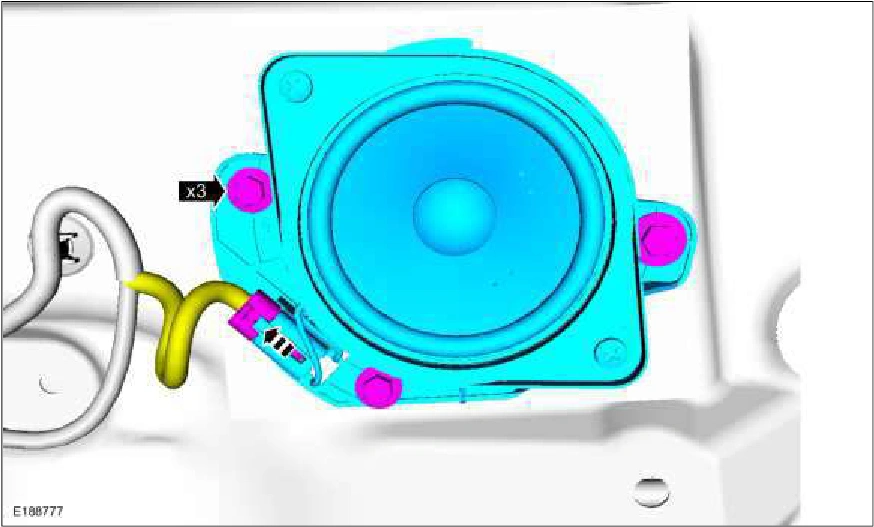

415-00B General Information -Vehicles With Touchscreen Display — original illustration 1, reference 4580Original colors & callouts · Select to enlarge

Woofer speaker

3. Remove the bolts and the door woofer speaker. Disconnect the electrical connector. Torque : 22 lb.in (2.5 Nm)

Source reference 4580
