Description and Operation 1-23
Engine Control Components

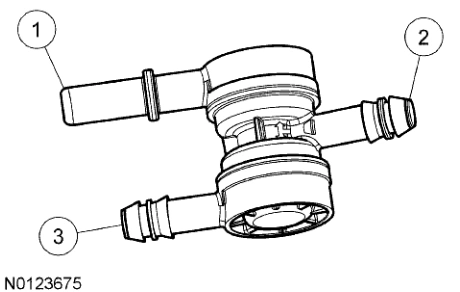

Typical EVAP Dual Check Valves
Item | Part Number | Description |
|---|---|---|
1 | — | Purge Flow To The Intake Air Inlet System To The Turbocharger |
2 | — | Purge Flow From The EVAP Purge Valve |
3 | — | Purge Flow To The Intake Manifold |

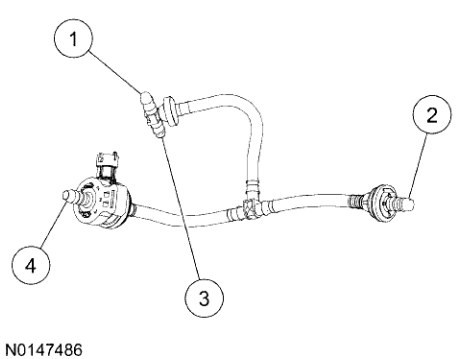

Typical EVAP Dual Check Valve Assembly
Item | Part Number | Description |
|---|---|---|
1 | — | Purge Flow To The Intake Air Inlet System To The Turbocharger From The Check Valve And EVAP Ejector |
2 | — | Purge Flow To The Intake Manifold |
3 | — | Turbocharger Boost Pressure From The Charge Air Cooler (CAC) |
4 | — | Purge Flow From The Fuel Tank |
Evaporative Emission (EVAP) Ejector
The EVAP ejector is used on turbocharged engines to create a vacuum in the EVAP purge line from the EVAP purge valve to the intake air system. During boost conditions, boost pressure flows through a venturi inside the EVAP ejector creating a vacuum in the EVAP purge line to the intake air inlet to the turbocharger. When the second EVAP check valve is open, the purge vapor is drawn through the EVAP ejector into the intake air tube, through the turbocharger and charge air cooler, to the intake manifold.
2016 Powertrain Control/Emissions Diagnosis, Gasoline Engines, 3/2015
