1-106 Description and Operation

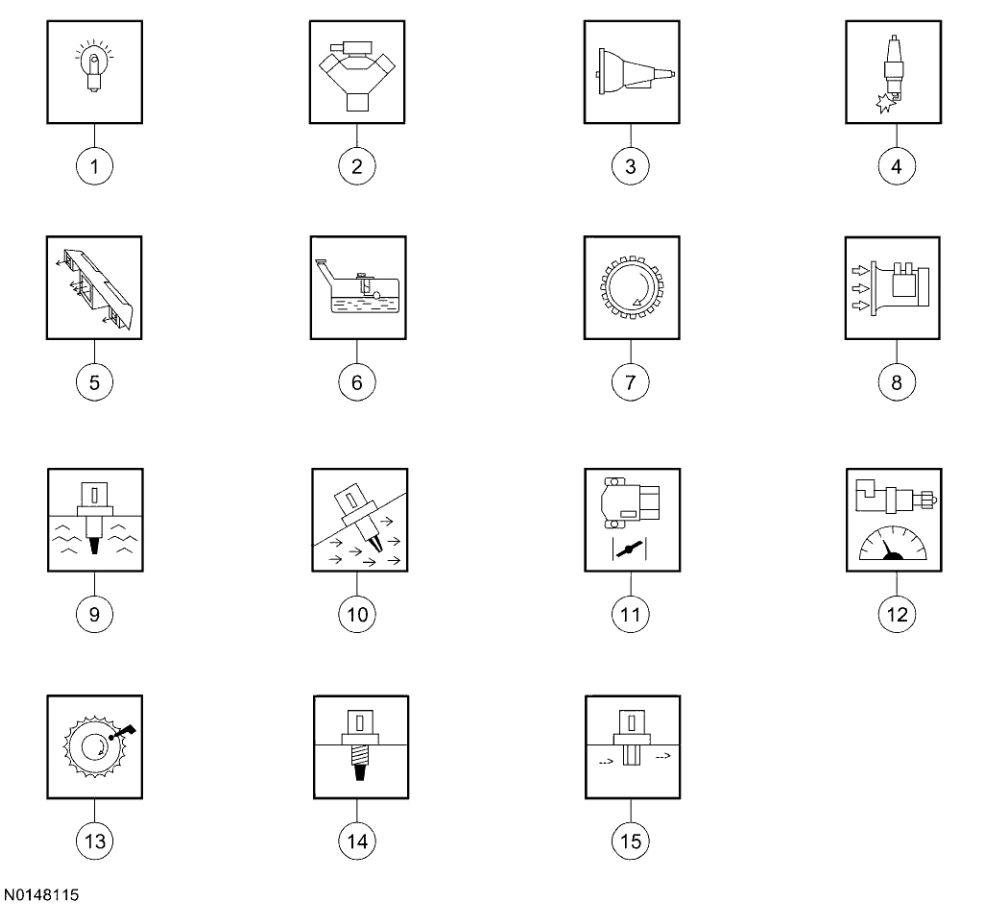

On Board Diagnostics (OBD) Monitors
Item | Part Number | Description |
|---|---|---|
1 | — | Malfunction Indicator Lamp (MIL) |
2 | — | Base Engine Components |
3 | — | Transmission |
4 | — | Ignition System |
5 | — | A/C Or Heater System |
6 | — | Fuel Level Input (FLI) |
7 | — | RPM |
8 | — | Mass Airflow (MAF) |
9 | — | Engine Coolant Temperature (ECT) |
10 | — | Intake Air Temperature (IAT) |
2016 Powertrain Control/Emissions Diagnosis, Gasoline Engines, 3/2015
