Engine Cooling - Component Location

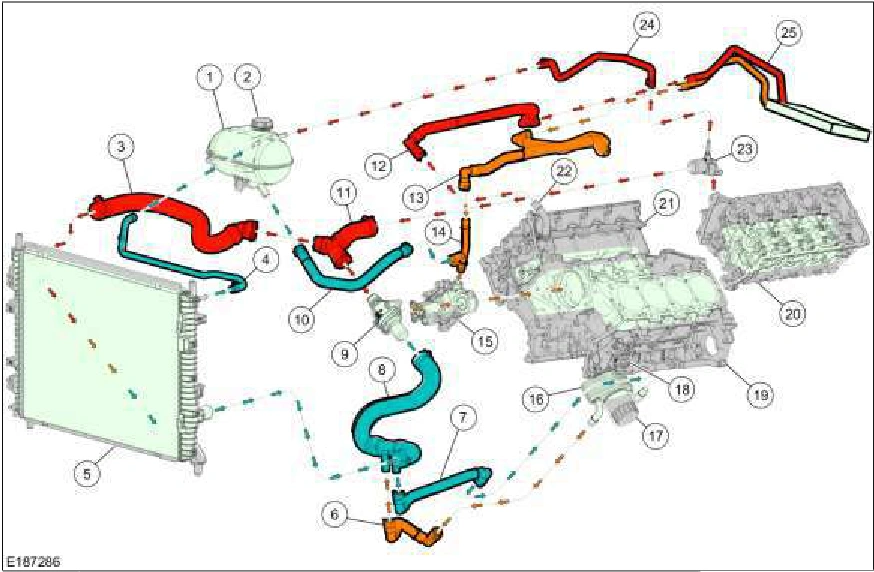

NOTE: Coolant temperature will vary with ambient temperature and load. Temperatures shown are for ambient temperature of 38° C (100° F). Red arrows indicate a temperature over 82.2° C (180° F), Orange arrows indicate a temperature of approximately 82.2° C (180° F), Blue arrows indicate a temperature below 82.2° C (180° F).
Item | Description | |
1 | Degas bottle | |
2 | Pressure relief cap | |
3 | Upper radiator hose | |
4 | Radiator-to-degas bottle hose | |
5 | Radiator | |
6 | Oil cooler outlet hose | |
7 | Oil cooler inlet hose | |
8 | Lower radiator hose | |
9 | Thermostat housing | |
10 | Degas bottle-to-engine hose | |
11 | Coolant bypass T assembly | |
12 | Heater inlet hose | |
13 | Heater outlet hose | |
14 | Heater outlet tube | |
15 | Coolant pump | |
16 | Oil cooler | |
17 | Oil filter | |
