twisted pair cable, data bus (+) and data bus (-) circuits. In addition to scan tool communication, the MS-CAN allows sharing of information between all modules on the network.

The GWM is used as a gateway for the messages to transfer between the scan tool and the modules on the MS-CAN.

The GWM translates the diagnostic messages from the HS-CAN2 to the MS-CAN and vice versa, allowing communication between the modules on the MS-CAN and the scan tool.

Controller Area Network (CAN) Fault Tolerance

NOTE: The oscilloscope traces shown are from the IDS oscilloscope taken using the IDS pre-configured CAN settings. The traces are for both data (+) and data (-) taken simultaneously (2-channel) at a sample rate of 1 mega-sample per second (1MS/s) or greater.

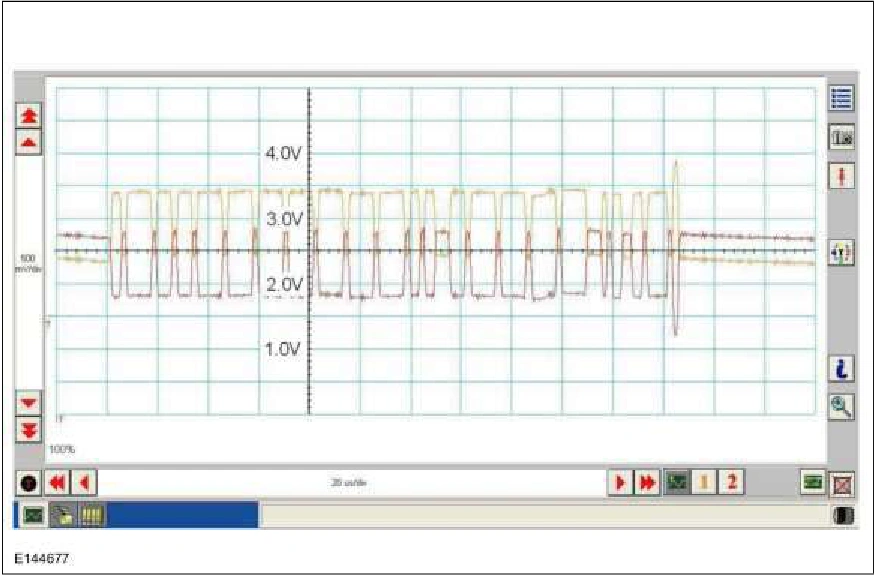

Fault Tolerance Normal Operation

Communications Network - System Operation and Component Description — original illustration 1, reference 5853Original colors & callouts · Select to enlarge

The data (+) and data (-) circuits are each regulated to approximately 2.5 volts during neutral or rested network traffic. As messages are sent on the data (+) circuit, voltage is increased by approximately 1.0 volt. Inversely, the data (-) circuit is reduced by approximately 1.0 volt when a message is sent.

Successful communication of a message can usually be identified by the slight spike at the end of a message transmission. Any signals that are significantly different than the normal CAN waveform may cause network Diagnostic Trouble Codes (DTCs) (U-codes) to set or may cause a complete network outage.

CAN Circuits Shorted Together
